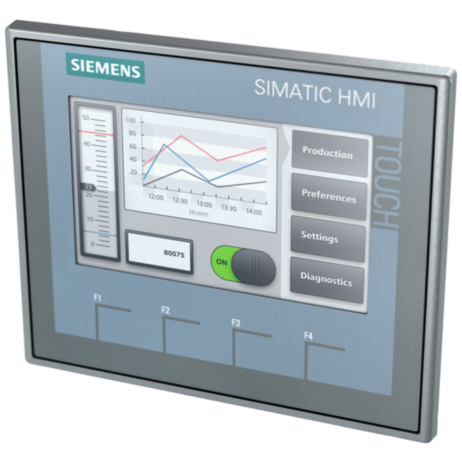

SIMATIC HMI KTP400 Basic

In stock

Part No

6AV2123-2DB03-0AX0

Manufacturer

Siemens

£422.00

SIMATIC HMI KTP400 Basic

Overview

SIMATIC HMI, KTP400 Basic, Basic Panel, Key/touch operation, 4" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.

Technical Info

More Information
Manufacturer	Siemens
Supply Voltage	24V DC
IP Rating (Front)	65
Colour display	true
Suitable for Safety Functions	No
Operating temperature (°C)	0
Supporting protocol for PROFINET IO	No
Supporting protocol for other bus systems	Yes
Number of interfaces PROFINET	1
Screen Size (")	4"
Type of display	TFT
Height of the front	116
Width of the front	141
Built-in depth	33
Number of function buttons, programmable	4
Net Weight (Kg)	0.458
