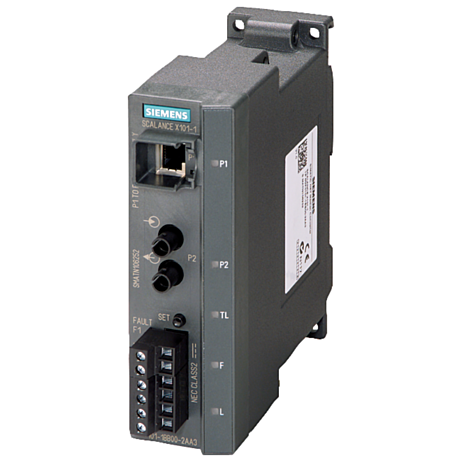

SCALANCE X101-1, IE media converter, 10/100 Mbps RJ45, 100 Mbps MM BFOC

SCALANCE X101-1, IE Media converter unmanaged 1x 10/100 Mbit/s RJ45 port, 1x 100 Mbit/s Multimode BFOC, LED diagnostics, error signaling Contact with Set pushbutton Redundant power supply, PROFINET-compliant securing collars, Manual available as a download available. Designed for use in the control cabinet for the implementation of fiber-optic on copper cables. Single, remote terminal devices or network segments can be linked via the optical path of the media converters. Two media converters also make integration of an optical path into a redundant ring possible, as well as the installation of media converters in a standby link.Industry-standard RJ45 port with additional retaining collar. Space-saving installation in the control cabinet through compact design in SIMATIC S7-300 format.– Wiring without a patch field is possible with quick mounting system of connectors and cables. Reliable operation, even in the event of a power supply failure, through redundant configuration.
