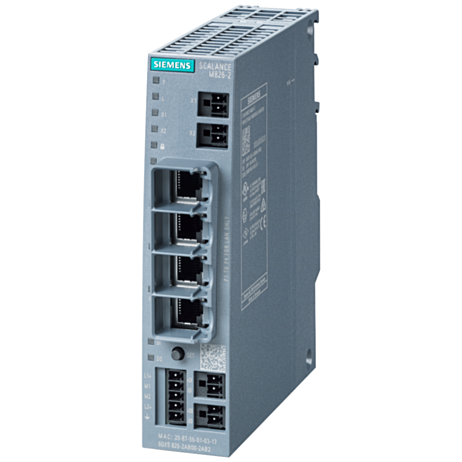

SCALANCE M826-2, SHDSL router (Ethernet<lt/>-<gt/>2/4-wire cable), VPN, firewall, NAT

SCALANCE M826-2 SHDSL router; for the IP communication via 2-wire and 4-wire cables from Ethernet-based Programmable controllers; SHDSL topology: Point-to-point, bonding, line bridge mode; Routing mode with VPN, Firewall, NAT; 4-port switch; 1x digital input, 1x digital output . SCALANCEM826-2 SHDSLSHDSL topology: point-to-point, bonding, line bridge mode, routing mode with VPN, firewall, transfer rate: 10 Mbps, 100 Mbps, for SHSDL transmission max. 15.3 Mbps, 4-port switch (RJ45), NAT, 1x digital input, 1 digital output, terminal strip, IP20 degree of protection.SHDSL modem for low-cost, secure connection of Ethernet-based subnets and programmable controllers via existing two-wire or stranded cables. Suitable for use in industrial and semi-industrial applications.High security standards by means of a firewall (stateful packet inspection) and VPN connections (IP-Sec) as an integral component of the Industrial Security concept. The device supports the ITU-T standard G.991.2, or SHDSL.biz (Single-pair high-speed digital subscriber line). Your investment protection: Possibility of continued use of an existing cable infrastructure for Ethernet transfer up to a distance of at least 10 km. Wide application area thanks to large bandwidth, high performance and speed.Accessories with removable data storage medium C-Plug and Key-Plug, desktop foot for table mounting, Fast Connect connectors, different cables as well as mounting frames top off the product perfectly.
