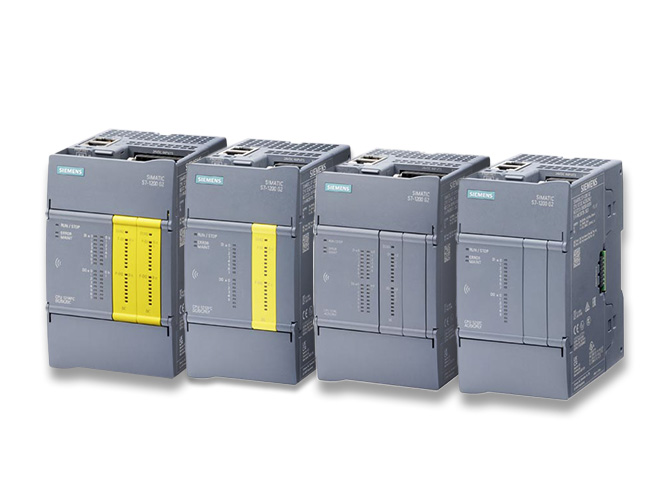

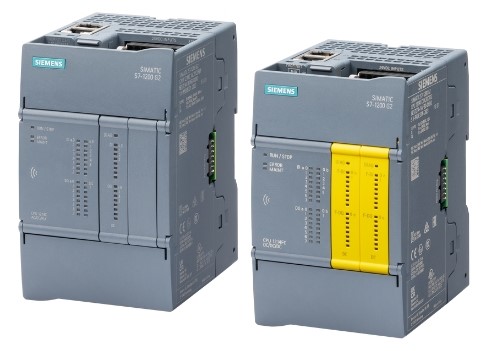

The highly anticipated SIMATIC S7-1200 G2 signifies a major step change when it comes to simpler automation applications. Expect an automation system that minimises complexity which is also optimised for cost efficiency.
Coordinated machine safety and motion control in one single PLC means that you can reduce system complexity, which is all supported by one common engineering platform (TIA Portal).
Key highlights of the updated S7-1200 controller range includes:
Efficient Motion Control with integrated motion control technology objects
Enhanced performance and scalability with a smaller space-saving design
Redefined machine safety hardware concept with fail-safe signal boards
NFC functionality for wireless access to diagnostics, operational & device data.

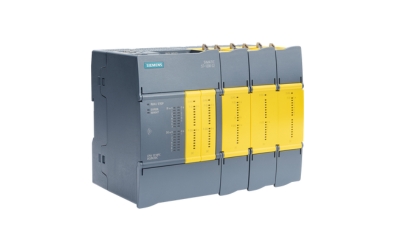

Flexible Machine Safety
Achieve more flexibility with the updated machine safety hardware concept. Easy expansion of fail-safe I/Os according to the number of safety functions withup to two fail-safe signal boards, that attaches to the front of the cpu, or fail-safe signal modules with mixed I/Os.
Fail-safe engineering integrated in STEP 7 Basic (no seperate safety license necessary from V20 onwards).
Flexible machine safety implementation with multiple operating modes (e. g., Safely-Limited-Speed) to ensure maximum productivity.

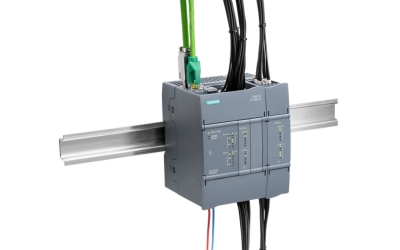

Efficient Motion Control
The S7-1200 G2'S integrated motion control functionality allows you to satisfy simple single axis control, up to coordinated axis control, and easy kinematics. System configuration has also been simplified with integrated motion control technology objects.
PROFINET IRT for fast program execution at synchronised intervals
Supports the SIMATIC Ready-to-use motion control applications and comprehensive motion control trainings to help you get started.

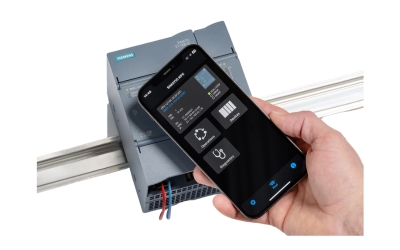

Dive into data with NFC functionality
Since Near Field Communication (NFC) functionality is built into all SIMATIC S7-1200 G2 controllers, you can wirelessly access diagnostic data and previously configured process data for quick and efficient machine service as well as heightened machine data transparency.
Gather Information without having to power the device.
Web API as an interface for reading and writing certain CPU data (based on configuration).
Setting IP-addresses and other network settings without programming device during commissioning.
NFC functionality eliminates the need for direct access with additional programming device to the PLC

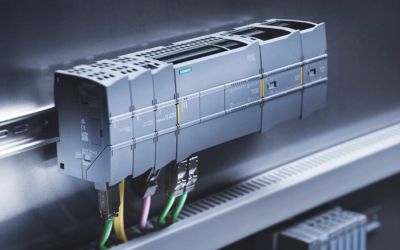

More power in a smaller package

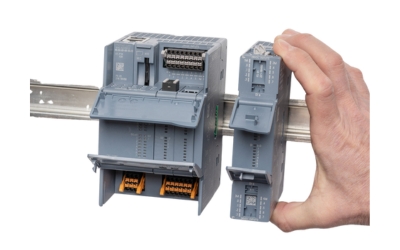

Despite its smaller space-saving design which has a reduced DIN rail footprint of ~ 25%, the S7-1200 G2 comes with enhanced processing power, dedicated communication performance, and a significant memory boost. Additionally, all CPU models now come with dual ethernet ports.
Supports the connection of up to 31 PROFINET devices and synchronised program execution with PROFINET IRT.
Removable high density terminal blocks with push-in wiring for ease of use.
SIMATIC Motion Control - Supported Technology Objects
Efficient motion control enters the basic automation space
TO_PositioningAxis
TO_SpeedAxis
TO_SynchronousAxis
TO_ExternalEncoder
TO_CamTrack
TO_OutputCam
TO_MeasuringInput
TO_Cam
TO_Kinematics
Scalable, cost-optimised and powerful portfolio for the basic automation segment
The SIMATIC S7-1200 G2 sets new standards for simple but high-precision automation controllers.
This new controller family is the solution to increasing demand for smart automation solutions that offers perfect coordination between standard, safety and motion control in a single PLC.
Reap the rewards of fast generation of user programs with less development effort and easily configurable motion profiles using the integrated Technology Objects.

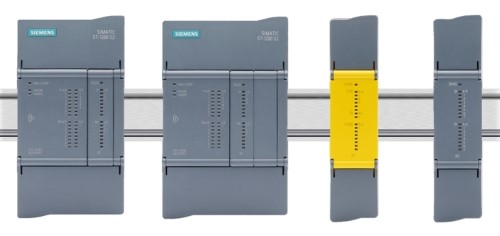

Setting new standards in the field of basic automation controllers
The SIMATIC S7-1200 G2 controller range is even more compact than its predecessor and yet it is perfect for stand-alone and interconnected machines as well as cost-effective automation solutions.
Take advantage of extended functionality for small motion control systems and small process applications.
CPU Technical Data
CPU 1212(F)C
CPU 1214(F)C
RAM Data
500 k
750 k
RAM Progr.
CPU 1212C: 150 k
CPU 1212FC: 200 k
CPU 1214C: 250 k
CPU 1214FC: 200 k
W x H x D (mm)
70 x 125 x 100
80 x 125 x 100
Integrated DI/DO
6/8
14/10
PROFINET/Modbus TCP
2 ports
2 ports
Communication Modules
3 max
3 max
Total SMs + CMs
6 max
10 max
Total Signal Boards (SBs)
1 max
2 max
Memory Card
Optional
Optional
Power Supply Voltage
Input Type Voltage
Output Type and Power
DC/DC/DC
DC/DC/RLY
AC/DC/RLY (Std. only)
DC/DC/DC
DC/DC/RLY
AC/DC/RLY (Std. only)

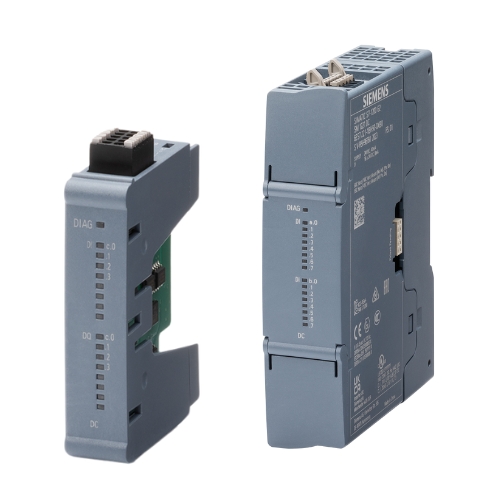

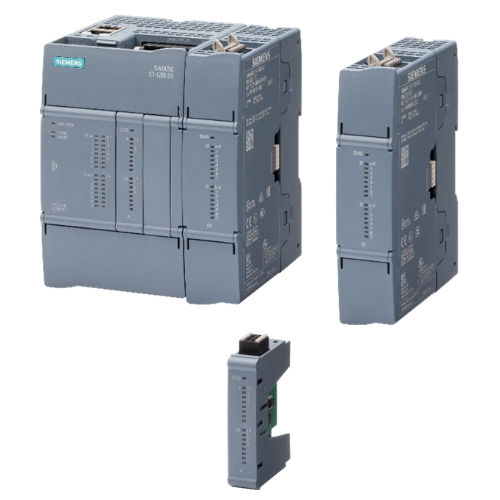

Enhanced Scalable Hardware Portfolio
With the new cost-efficient hardware concept, you can rely on a more competitive PLC system that offers higher levels of flexibility. boosted performance and additional scalability.
Its particularly useful for simple integration in interconnected systems and into systems that require one or more HMI devices.
Digital SBs
Analog SBs
Digital SMs
Analog SMs
8 DI 24V 100 kHz
4 AI
DI 16 x 24 V DC
8 AI
8 DQ 24V 100 kHz
4 AQ
DQ 16 x 24 V DC 0.5 A
8 AQ
4 DI / 4 DQ 24V 100 kHz
2 AI / 2 AQ
DQ 16 x Relay
4 AI / 4 AQ
4 DI / 4 DQ 5V 200 kHz
4 TC
8 DI / 8 DQ
8 TC
2 RTD
8 DI / 8 RLY
4 RTD

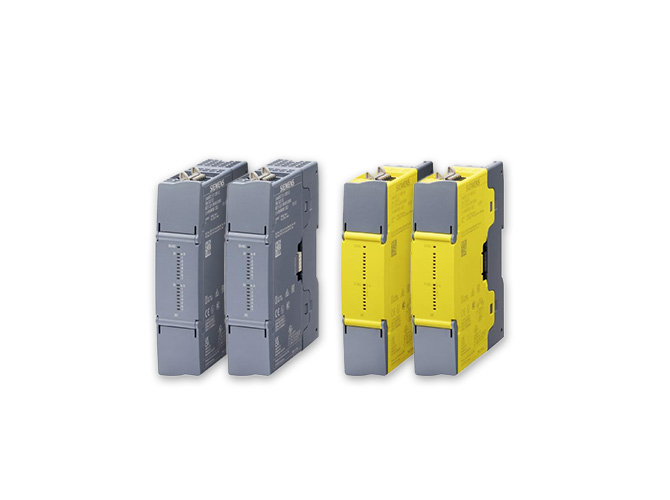

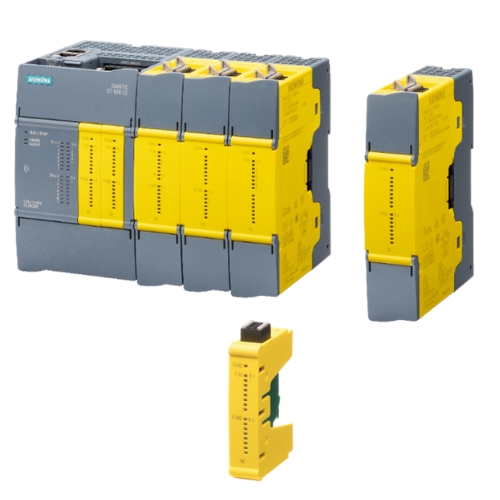

Optimised Machine Safety Hardware Concept

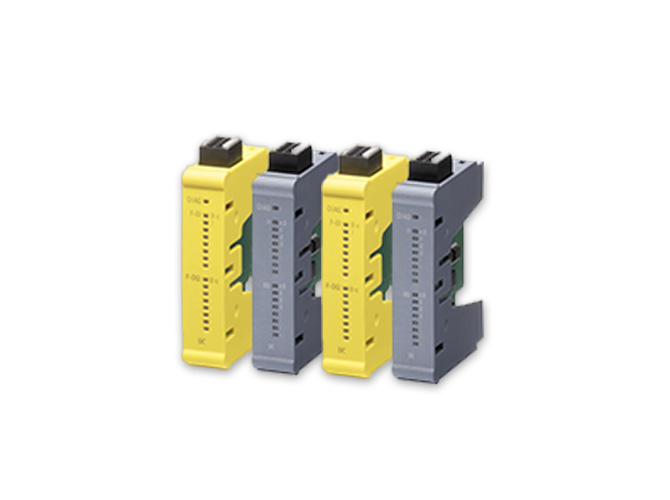

Improved F-IO Portfolio with F-SBs and mixed I/O modules.
1oo1 (One out of One): 1oo1 as simple redundancy, a single input connected to a fail-safe digital input.
1oo2 (One out of Two): Redundancy with cross-diagnosis: There are two independent sensors, each connected to an F-DI. Both sensors provide signals to the F-DI. The F-DI monitors the signals and makes decisions based on both inputs. This configuration is normally used in safety-critical applications.
Vs: Integrated Sensor supply, Allows you to detect short-circuit or overload scenarios, and react accordingly.

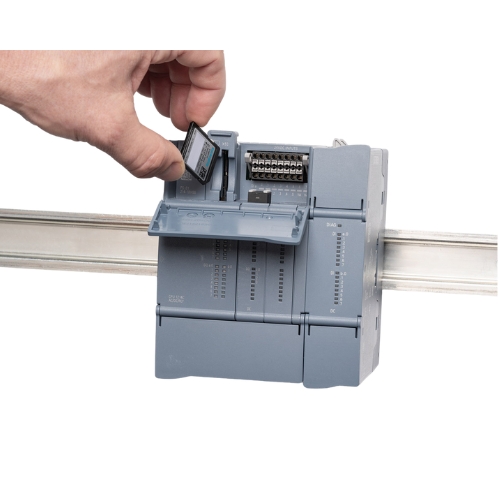

The SIMATIC Memory Card that the new S7-1200 G2 CPU's support boast increased lifespan 500,000 write accesses possible.
No special card reader is required (SD card with FAT 32 file system) and experience no data lost despite openness with CPU shutdown.
Project sent as an e-mail with transfer to memory card using standard PC.
Benefit from increased copy protection – Option of linking the programs to the memory card serial numbers.
What can be saved on a S7-1200 Memory Card?
Program
Data
Data Protocol
Files
System Data
Projects
Recipes
Optimal 24 VDC supply of SIMATIC S7-1200 G2
Details for the new Power Module PM1207 G2 SITOP
Input voltage: 120/230 V AC, automatic switching
Output: 24 V/5 A
Efficiency > 90 %
Power information via diagnostics interface over a digital input of the PLC
Read out PSU data on CPU via NFC
Removeable push-in clamps for input and output
DIN rail and wall mounting
Width: only 70 mm, same size with double performance compared to previous device
2 variants: without and with Ex-protection certification
Configurable in the TIA Portal

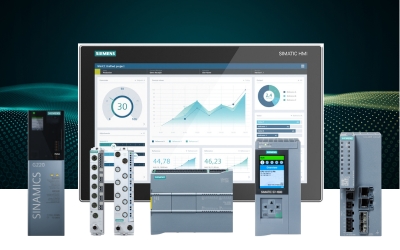

DON'T WAIT TO AUTOMATE
Pick up everything you need to build your SIMATIC S7-1200 G1 PLC system
We currently hold an extensive stock profile of S7-1200 components that are all available for next-day delivery.
The intelligent choice for compact automation solutions with extended communication options and integrated technology functions - available in both standard and failsafe versions.
