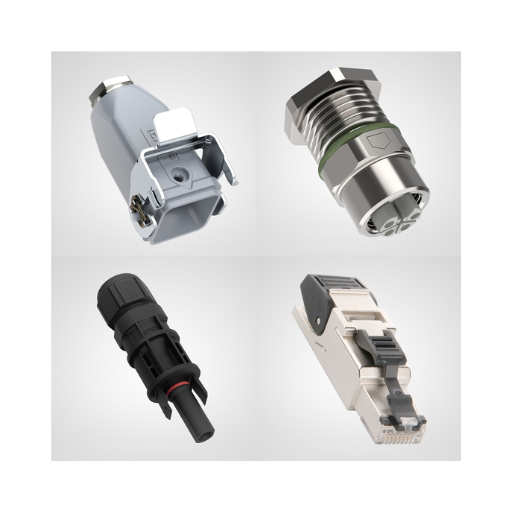

Whether you're dealing with circular connectors for motion control or rectangular connectors with robust connector housings: industrial connectors from LAPP enable simple and secure connection and separation of cables.
With the EPIC® connector configurator, you can quickly and clearly assemble the right industrial connector for your application.
The most important considerations when selecting a heavy-duty connector are its electrical characteristics, mechanical properties, and the materials used in its construction.
The EPIC®heavy-duty connector range from LAPP ensures safe connection and disconnection of electrical power and signals within robust housings. These connectors are ideal for use in hostile environments, whether for power, control, signal, or data communication applications.
EPIC® connectors excel in flexibility, reliability, and durability. LAPP Industrial Connectors incorporate advanced technology that relieves strain, protects contacts from external damage, and ensures a stable mount.
Furthermore, the power and signal circular connectors are specially designed for servo motors, servo harnessing, and applications involving measurement and control technology.

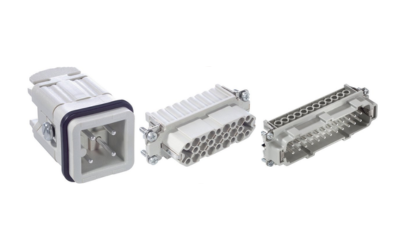

EPIC® H-A / HD / H-BE Inserts
A range of inserts suitable for all EPIC® rectangular connector housings, from 3-pin contacts up to 64, depending on your voltage and current requirements.

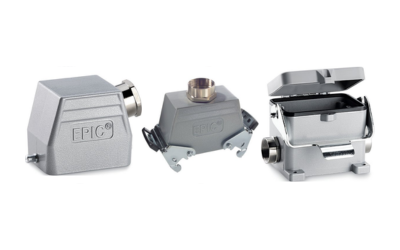

EPIC® H-B Housings
Rectangular connector housings are available as hoods, panel base housings, surface base housings, and cable coupler hoods. They are manufactured from a variety of materials to suit different applications.

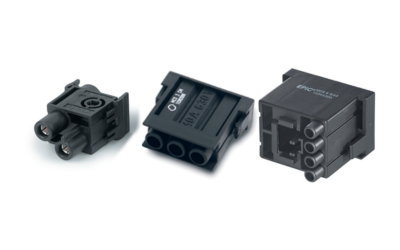

EPIC® MC Modular
The MC modular connector series can be custom-configured to meet application requirements by combining a variety of standard plug-and-play modules within different support frame sizes.
Available configurations include contacts for power and control, thermocouple contacts, pneumatic modules, and data modules for PROFIBUS and Ethernet.

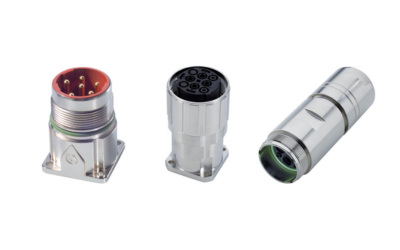

EPIC®LS Circular Connectors
The LS circular power connectors come in seven housing styles and two contact configurations. Each features a durable nickel-plated zinc body, plastic contact insulation, and gold-plated electrical contacts. Cable-mounted versions also include an integral EMC shield, cable clamp, and seal.
The connectors are available in two configurations: the 5+PE configuration, with 5 power contacts plus ground, rated for 630V and 25A; and the 3+PE+4 configuration, with 3 power contacts plus ground, rated for 630V and 26A, plus 4 additional signal contacts rated for 250V and 7A.

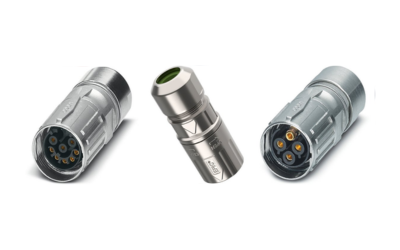

EPIC® M17 & M23 Signal Connectors
The M17 & M23 signal connectors are available in 11 housing styles with 3 keying positions. Inserts come in 7 contact configurations, supporting male or female, crimp, or solder contacts. Cable-mounted versions include an EMC shield, cage clamp, and seal.
The connectors offer configurations with 6, 7, 8+1, 9, 12, 16, and 17 crimp or solder contacts, in either clockwise or counter-clockwise orientation.
These connectors are used to link cables together or connect a cable to fixed wiring in control enclosures, machines, instruments, encoders, or servo motors.
Kits and sets for minimised ordering effort
Not every customer feels comfortable researching and purchasing all the individual components required to manufacture a plug connector. Many also seek to reduce ordering complexity and eliminate the risk of incorrect orders.
To address this, pre-assembled plug connector sets with optimally coordinated components are a preferred choice.
That is why kits for rectangular, circular, and solar connectors are available in each plug connector product group. These kits typically include a housing, insert, contacts, and conduit gland, providing a complete and convenient solution.
Your Trusted Partner for Tailored Cable Solutions
As your trusted automation partner, we're here to ensure you get the perfect cable solution for your application. With countless options available, finding the right fit can be challenging, but that’s where our expertise comes in.
Contact us today for a tailored quote and let us add value to your automation journey with reliable, high-quality cable solutions.
