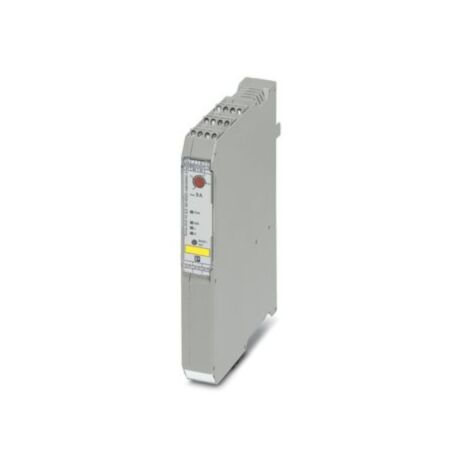

ELR H51-IESSC-24DC500AC-9 - Hybrid motor starter

Name: ELR H51-IESSC-24DC500AC-9 - Hybrid motor starter
Price: 234.19 GBP
Availability: InStock

In stock

Part No

2902745

Manufacturer

Phoenix

£234.19

Hybrid motor starter

Overview

Short-circuit-proof hybrid motor starter for reversing 3~ AC motors up to 550 V AC, with 24 V DC input, 9 A output current, emergency stop function, and adjustable overload shutdown. Can only be used with EM-RD adapter, EM-RI adapter or power distribution board.

Technical Info

More Information
unit_factor	1
Manufacturer	Phoenix
Number of auxiliary contacts NO	1
Number of auxiliary contacts NC	1
Suitable for rail mounting	false
Number of command positions	1
Overload release current setting (A)	1.5
With short-circuit release	true
Type of motor starter	EV004002
External reset possible	true
Temperature compensated overload protection	false
Suitable for emergency stop	true
Type of electrical connection for auxiliary- and control current circuit	EV000415
Width (mm)	22.5
Height (mm)	160
Depth (mm)	114.5
