ELR H5-IES-SC-230AC/500AC-9 - Hybrid motor starter
ELR H5-IES-SC-230AC/500AC-9 - Hybrid motor starter

ELR H5-IES-SC-230AC/500AC-9 - Hybrid motor starter

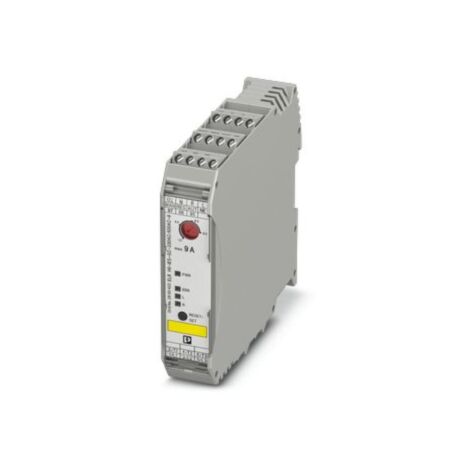

Name: ELR H5-IES-SC-230AC/500AC-9 - Hybrid motor starter
Price: 143.2 GBP
Availability: InStock

In stock

Part No

2900422

Manufacturer

Phoenix

£143.20

Hybrid motor starter

Overview

Hybrid motor starter; functions: Start motor, Reverse motor, Motor protection, Emergency stop; input: 230 V AC; output: 3~, 500 V AC, 9 A; connection method: Screw connection

Technical Info

More Information
unit_factor	1
Manufacturer	Phoenix
Rated Control Supply Voltage	85
Number of auxiliary contacts NO	1
Number of auxiliary contacts NC	1
Suitable for rail mounting	true
Number of command positions	1
Overload release current setting (A)	1.5
With short-circuit release	false
Rated operation current AC-3 (A)	9
Type of motor starter	EV004002
External reset possible	true
Temperature compensated overload protection	false
Suitable for emergency stop	true
Type of electrical connection for auxiliary- and control current circuit	EV000415
Width (mm)	22.5
Height (mm)	107
Depth (mm)	114
