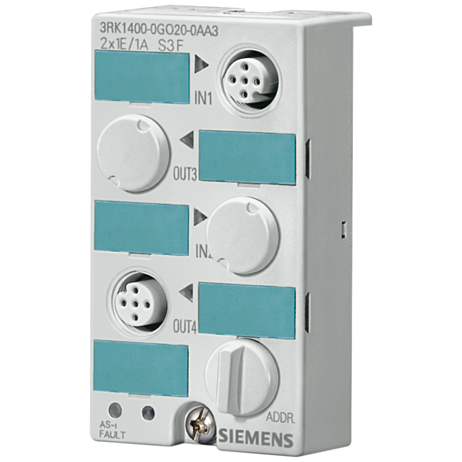

AS-INTERFACE COMPACT MODUL, K45

In stock
Part No
3RK1400-0GQ20-0AA3
Manufacturer
Siemens
£117.16

AS-i compact module K45, digital, 2x 1 I/1 Q, IP67, 2x1 input/output 2xM12 socket


Add to basket
Available for backorder
Add To Quote
AS-i compact module K45 digital 2 x (1 DI/1 DQ), IP67 2 x 1 input/1 output 2 x M12 socket Total current for all inputs and outputs max. 200 mA Supply I/O via U_ASI Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 is to be ordered separately
More Information
ManufacturerSiemens
Supply Voltage24V DC
Number of Digital Inputs2
Number of Digital Outputs2
Suitable for Safety FunctionsNo
Supporting protocol for PROFINET IONo
Supporting protocol for other bus systemsNo
Number of interfaces PROFINET0
Digital outputs configurablefalse
Degree of protection (IP)IP67
Net Weight (Kg)0.086
Width (mm)45
Height (mm)80
Depth (mm)30
