AS-INTERFACE COMPACT MOD. IP68

Name: AS-INTERFACE COMPACT MOD. IP68
Price: 206.96 GBP
Availability: InStock

In stock

Part No

3RK1400-1CR00-0AA3

Manufacturer

Siemens

£206.96

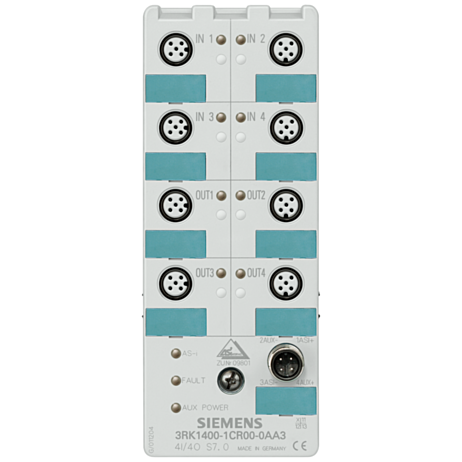

AS-i compact module IP68 digital, 4 I/4 Q, 4x1 input, max. 200 mA

Overview

AS-i compact module K60 digital 4 DI/4 DQ, IP68 4 x input, maximum 200 mA 4 x output, 2 A, 24 V DC maximal 4 A for all outputs 8 x M12 sockets Mounting plate 3RK1901-0CA00 must be ordered separately

Technical Info

More Information
Manufacturer	Siemens
Supply Voltage	24V DC
Number of Digital Inputs	4
Number of Digital Outputs	4
Suitable for Safety Functions	No
Supporting protocol for PROFINET IO	No
Supporting protocol for other bus systems	No
Number of interfaces PROFINET	0
Digital outputs configurable	false
Net Weight (Kg)	0.305
Width (mm)	60
Height (mm)	152
Depth (mm)	29
