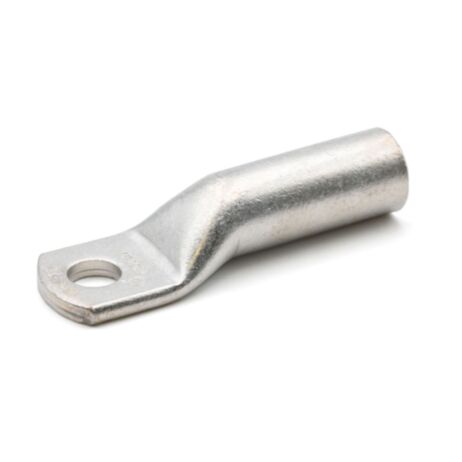

2509742-2A100-2M12 COPPER TERMINAL(PK=5)

The 2A-M series cable lugs are designed for heavy duty, for grounding structures and equipment both indoors and outdoors and for medium voltage applications up to 35 kV. 2A-M series terminals are made from high purity Copper tube with a purity greater than 99.9%, and are annealed. They feature a double length barrel for enhanced electrical and mechanical performance in heavy duty applications. Cembre lugs are annealed to guarantee optimum ductility which is an absolute necessity for connectors which will have to withstand the severe deformation arising when compressed and any bending of the palm during installation. In applications subject to vibration, terminals still have to perform a reliable connection, annealing plays a vital role in avoiding cracking or breaks between the barrel and palm. The absence of an inspection hole prevents the entry of water or moisture into the crimped joint making these terminals suitable for outdoor applications. 2A-M series lugs form an important part of Cembre crimping systems for power carrying conductors. Each connector is marked as follows: Cembre trade mark and reference number Nature and size of conductor (sqmm) Ø stud (mm) Lugs are manufactured from electrolytic copper tube Cu-OF CW008A confroming to UNI EN 13600:2013. Lugs are electrolytically tin plated with a minimum thickness of 3μm to avoid oxidation.
