PTFIX 18X1,5-NS15A YE - Distribution block

Name: PTFIX 18X1,5-NS15A YE - Distribution block
Price: 2.77 GBP
Availability: InStock

In stock

Part No

3002961

Manufacturer

Phoenix

£2.77

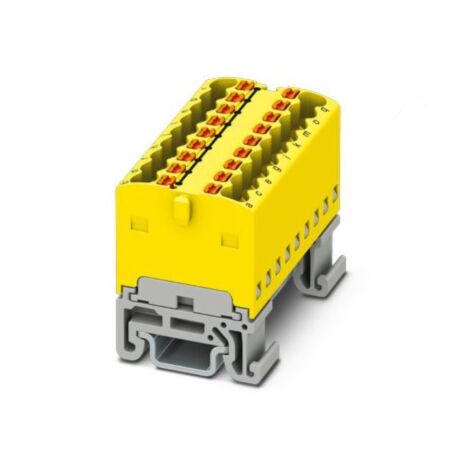

Distribution block

Overview

Distribution block, bridged internally, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm² - 2.5 mm², mounting type: NS 15, color: yellow

Technical Info

More Information
unit_factor	20
Manufacturer	Phoenix
Rated current In	17.5
Internally connected stages	true
Number of clamp positions per level	18
Number of levels	1
Closing plate required	No
Type of electrical connection 2	Other
Type of electrical connection 1	Other
Operating temperature (°C)	-60
Rated voltage	500
Width (mm)	37.35
Height (mm)	21.6
