PT 2,5-TWIN BU - Feed-through terminal block

Name: PT 2,5-TWIN BU - Feed-through terminal block
Price: 1.05 GBP
Availability: InStock

In stock

Part No

3209552

Manufacturer

Phoenix

£1.05

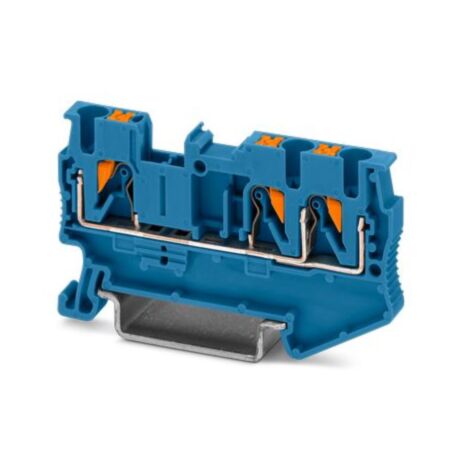

Feed-through terminal block

Overview

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 3, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue

Technical Info

More Information
unit_factor	50
Manufacturer	Phoenix
Rated current In	24
Internally connected stages	true
Number of clamp positions per level	3
Number of levels	1
Closing plate required	Yes
Type of electrical connection 2	Other
Type of electrical connection 1	Other
Type	Feed-Through
Operating temperature (°C)	-60
Rated voltage	800
Width (mm)	5.15
Height (mm)	60.4
Depth (mm)	35.2
